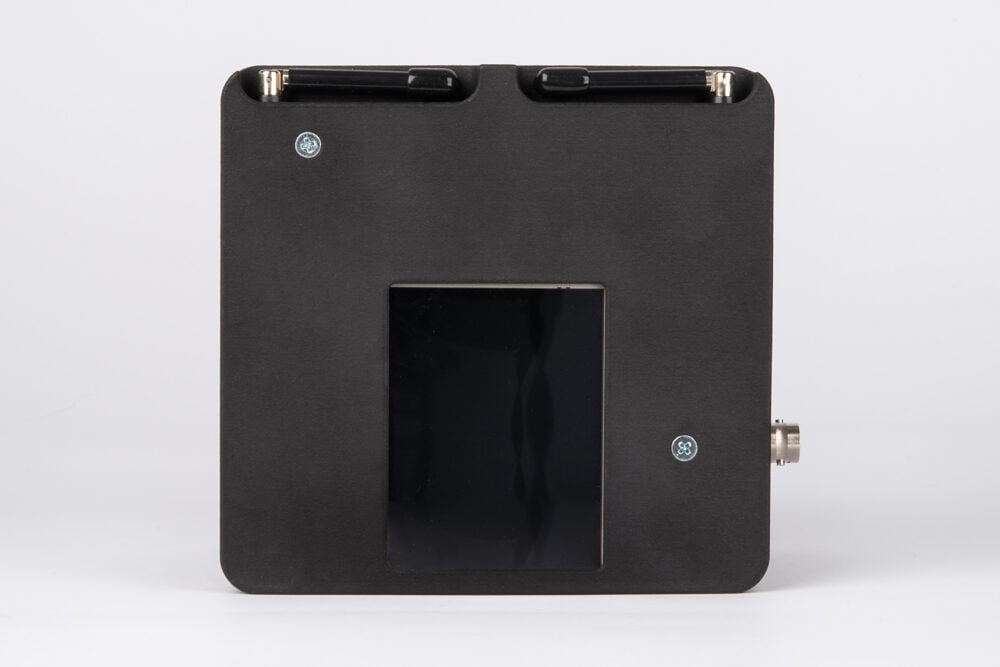

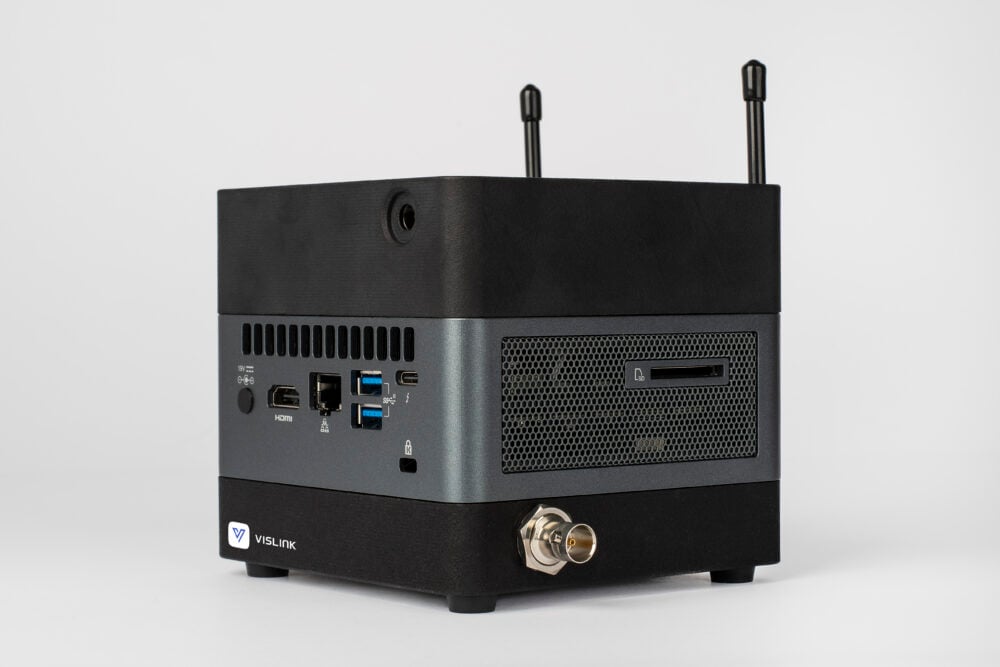

MVP Terralink Mini

Compact H.265 Encoder

WMT TerraLink Encoder (1U)

Rackmount encoders for OB and Remote Production for Live Streaming, upgradable with bonded modems

The WMT Terralink encoder family is Mobile Viewpoint’s portable servers that are typically used for professional outside broadcast and other point-to-point live streaming needs. The 19” rack mountable units can be used in SNG trucks, outside broadcast vans or studio set-up’s to send live video streams reliably, in high quality and with low latency.

The standard 1U Terralink xKxC (where K is the video format and C is number of video input channels) is a multi-camera encoder that can support up to 4 inputs and up to 4K video formats.

The encoders can support video return, IFB and the option of bonded internal modems (5G/4G/3G) within the 1U form factor.

An enhanced 2U encoder server is available that additionally supports REMI features including RCP control, Tally Light control and an enhanced IFB intercom utilizing integrated PreSonus hardware within the encoder.

All encoders can operate with the WMT range of decoders that are installed at the receiving end.

All encoders in the field can be remotely managed and controlled via Linkmatrix, a free-to-use hosted management platform that operates from a browser on any device.

Linkmatrix can manage individual encoders, destinations, show proxies, record & go, video return, transmission and cellular networks and other set ups and configurations.

More information about the LinkMatrix management portal

2WAYLINK – this is an optional feature to effectively allow the encoder to become both an encoder and decoder. A license can be added at any time to enable this feature to the 2C or 4C.

Standard video return is 720p via HDMI, but with 2WAYLINK it is possible to receive a full HD stream via HD-SDI. It can be used for high quality viewing or where local mixing is needed.

For 2WAYLINK to work, any return video needs a decoder in the network path.

Product Features
  • H.265/H.264 Encoder
  • Compact sized
  • Ethernet, WiFi and/or Satellite connections and upgradable with modems
  • Remote (web-based) management
  • HD-SDI input and video return
  • IP outputs – NDI, RTMP, RTSP, MPEG-TS
  • Internet hotspot (LAN and WiFi), Store & Forward concurrently with video live stream
  • Point-to-point transmission or cloud decoding
  • Adaptive bit rate control and error correction
