Description

Description

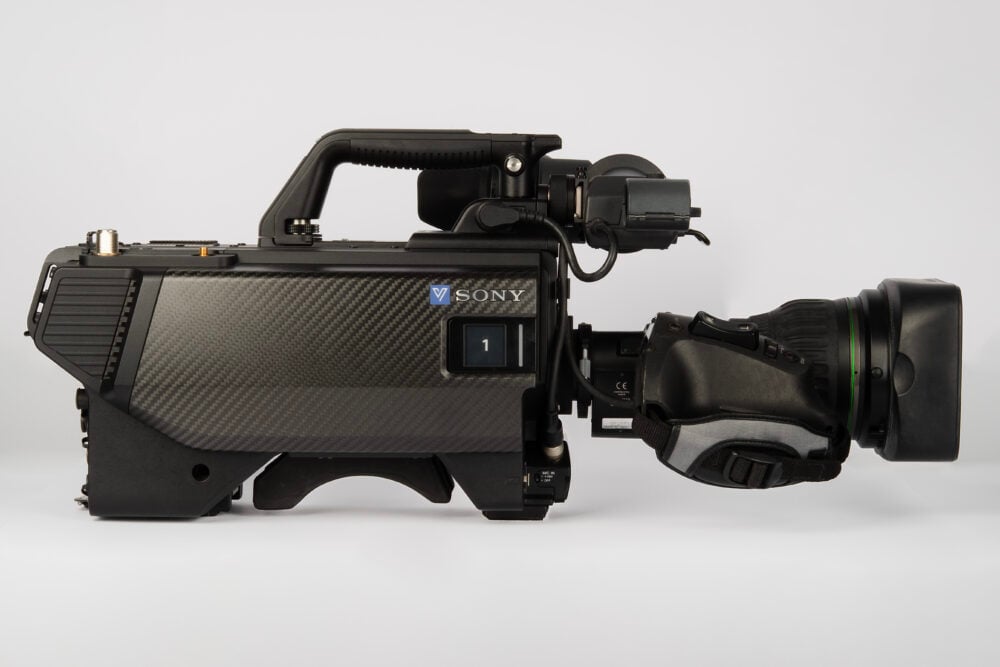

The Sony HEVC 4K UHD Wireless Camera Transmitter is a fully integrated HEVC 4K UHD, HDR-ready wireless system, designed for Sony’s HDC-5500 new 4K multiformat live camera system.

Product Features
Technical Specifications
Product Downloads
Related Products

Product Features

HEVC/4K UHD Very Low Latency Encoder
HDR Ready
Interchangeable RF Modules
FocalPoint Compatible integrated Camera Control
Compatible with L1750 RF module1
Remote control over Wi-Fi via web interface
Add-on PA Barrel Booster Option

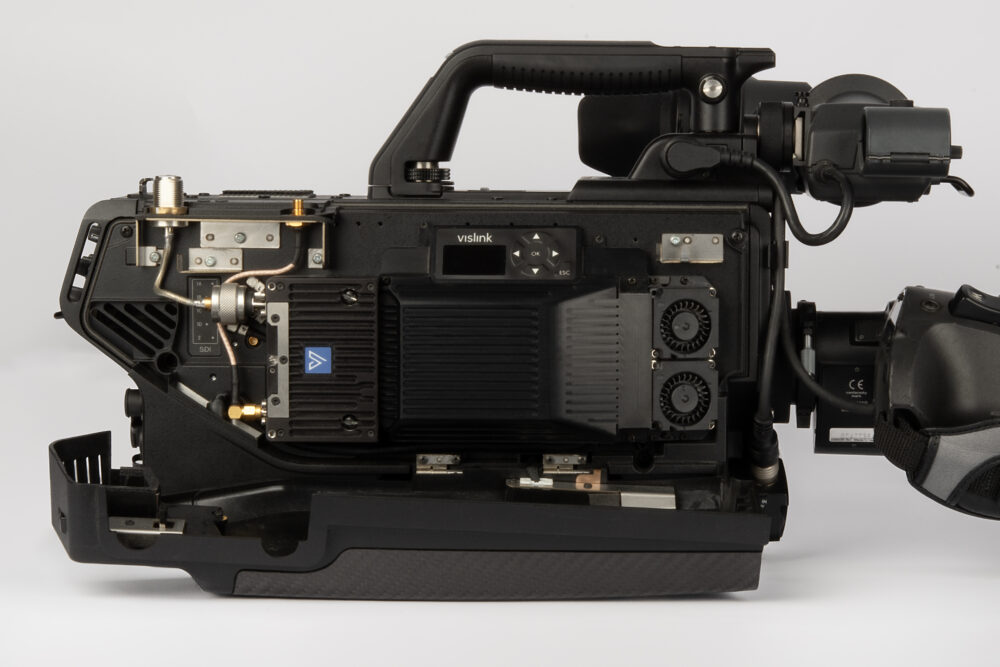

Sony HEVC 4K UHD Wireless Camera Transmitter

The INCAM-HS offers full broadcast quality encoding at 4K UHD, 1080p, 1080i and 720p with camera control. The unit utilizes user-changeable RF modules for rapid, in-field, swap outs.

HCAM

Frequency Band

1.300–1.700 GHz^*
1.950–2.700 GHz^*
3.200–3.900 GHz^*
4.400–5.000 GHz
6.425–7.125 GHz
6.800–7.500 GHz
7.200-7.750 GHz

^*Pre-distortion correction

Transmit Power

Adjustable 10 to 250 mW (or add Barrel Booster option)¹

Transmit Antenna

Omni Directional 3 dBi gain (nom.)

Frequency Selection

Up to 32 pre-set channels for tuning

Modulation

COFDM DVB-T
LMS-T

UHF Receiver

410 to 490 MHz frequency range
FocalPoint camera control compatibility

Modulation Modes

QPSK, 16QAM, 64QAM
FEC:
1/2, 2/3, 3/4, 5/6, 7/8, 9/10, 14/15
Guard interval:
1/32, 1/16, 1/8, 1/4

Data Rate

DVB-T 4.98 to 31.7 Mbit/s
LMS-T up to 43 Mbit/s, bandwidth dependent
(licensed option)

Bandwidth

DVB-T at bandwidths of 6/7/8 MHz
LMS-T bandwidths of 3/4/5/6/7/8/10/ 12/14/16/20 or 24 MHz with two carrier density options.
Optional digital pre-distortion for enhanced adjacent channel performance^*

*frequency permitting

Video Encoder Profiles

H.265 HEVC Main, Main 10, Main 4:2:2 10
H.265 HEVC 8/10 bit to 4K p60
H.264 AVC Main, High, Baseline up to Level 5.2
H.264 AVC High 10/4:2:2
H.264 AVC 4:2:0/4:2:2
8/10 bit to HD p60

Video Formats

480i@29.97
576i@25
720p@50/59.94/60
1080i@50/59.94/60
1080p@23.98/24/25/29.97/ 30/50/59.94/60
2160p@23.98/24/25/29.97/ 30/50/59.94/60

Encoding

HEVC (H.265)
AVC (H.264)
AAC
MPEG-1
AES / Dolby Pass-through

Power

Power supply to camera

Power Consumption

Nominally 30W in standard configuration (with L17501927)

PIDs

PIDs user configurable

Latency

Single frame (4k UHD/1080p)²

Size & Weight

245 (L) x 38 (H) x 115 (W) mm⁴
688g³

Environmental

Temperature
Operating 0˚C to 50˚C (32˚F to 122˚F)

User Interface

OLED display for enhanced visibility

Notes:

Some specified features are available via optional licenses.
We reserve the right to change specifications at any time without prior notice.
¹We recommend using the optional D-TAP cable to power the Barrel Booster.
²End to end latency including RF, with ULRX-LD Rx.
³Including interchangeable RF module.
⁴Including interchangeable RF module antenna ports.
