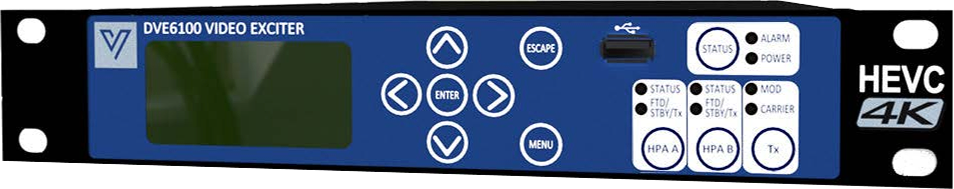

DVE6100

Product Features

4K, HD, SD multi-format encoding
DVB-S, DVB-S2 and highly efficient DVB-S2X modulation
HEVC, MPEG-4, MPEG-2 multi-standard compression
High quality 4:2:0, 4:2:2, 8-bit/10-bit profiles
1x 4k or up to 4x HD services encoded
Very low latency encoding modes

4K HEVC MULTI-FORMAT EXCITER WITH IP STREAMING

The DVE6100 offers ultimate satellite bandwidth efficiency by utilising the latest HEVC video compression and DVB-S2X satellite modulation technology – allowing a 50% reduction in leased satellite bandwidth compared to MPEG-4, DVB-S2 technology—dramatically reducing satellite OPEX.

Inputs

2 SFP+ module slots supporting electrical and optical interfaces carrying:
4 x SDI SMPTE-259M
4 x HD-SDI SMPTE-292M
4 x 3G-SDI SMPTE-424M
2 x 6G-SDI SMPTE ST-2081
1 x 12G-SDI SMPTE ST-2082

Outputs

L-band main output
L-band monitor output
10MHz reference
ASI TS output
IP TS output
HPA Control

Video Profiles

H.265 HEVC Main, Main 10, Main 4:2:2 10
H.265 HEVC 8/10 bit to 4K p60
H.264 AVC Main, High, Baseline up to Level 5.2
H.264 AVC High 10/4:2:2
H.264 AVC 4:2:0/4:2:2
8/10 bit to HD p60

4K Native and UHD (1 Service)
HD (Up to 4 Services)5
1.0-90 Mbps (per channel with maximum combined rate of 90 Mbps)
SD (Up to 4 Services)
4.2.0 Main 0.5-90 Mbps
4.2.2 Main 2.0-90 Mbps

Video Encoder

HEVC 4K UHD, HD, SD encode
MPEG-4 HD, SD encode
MPEG-2 HD, SD encode

Video Formats

480i@29.97
576i@25
720p@50/59.94/60
1080i@50/59.94/60
1080p@23.98/24/25/29.97/ 30/50/59.94/60
2160p@23.98/24/25/29.97/ 30/50/59.94/60

Service Encodes

1x 4K UHD service
Up to 4x HD/SD services

Encryption

BISS Mode 1 & E
AES 128/256

Audio Encoder

MPEG-1 Layer I encode
MPEG-1 Layer II encode
AAC encode
Linear PCM pass-through

Audio Channels

Up to 8x stereo pairs

Ancillary Data

Closed Captions

Satellite Modulation

DVB-S QPSK
DVB-S2 QPSK, 8PSK, 16APSK
DVB-S2X QPSK, 8PSK, 16APSK, 32APSK, 64APSK, 128APSK, 256APSK

Modulation Parameters

All FECs as applicable to modulation modes
5%, 10%, 15%, 20%, 25%, 30%
Short Frames & Long Frames

Modulated Output

950 – 2150 MHz in 1khz Steps
Output power –5 to +5dBm
Monitor level –20dB relative to main
