ULRX-LD

Multi-Format HEVC Receiver

High-Performance Receiver for Broadcast Sports and ENG News

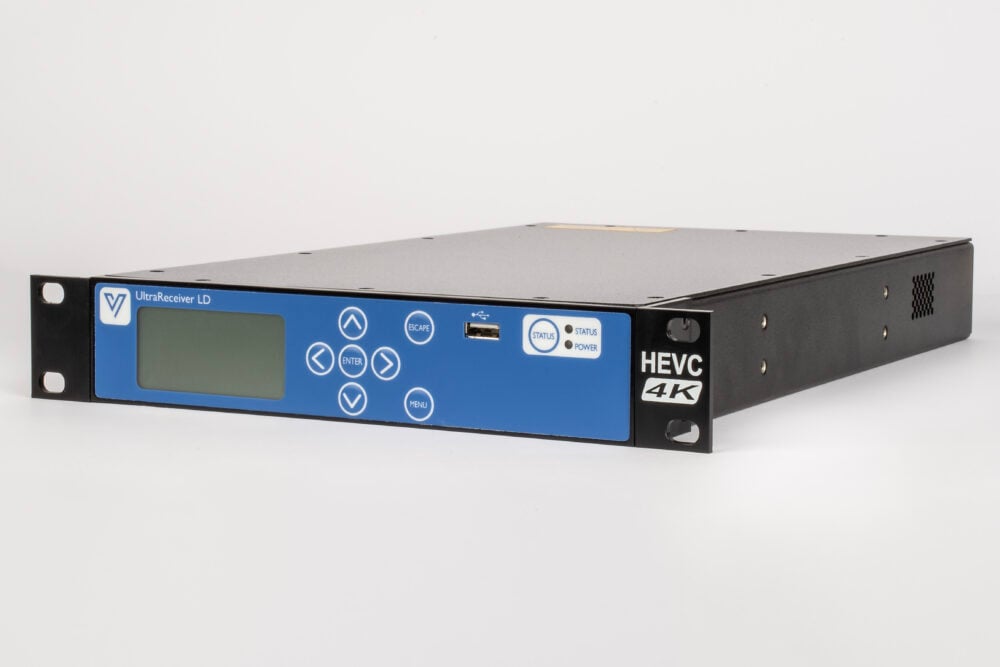

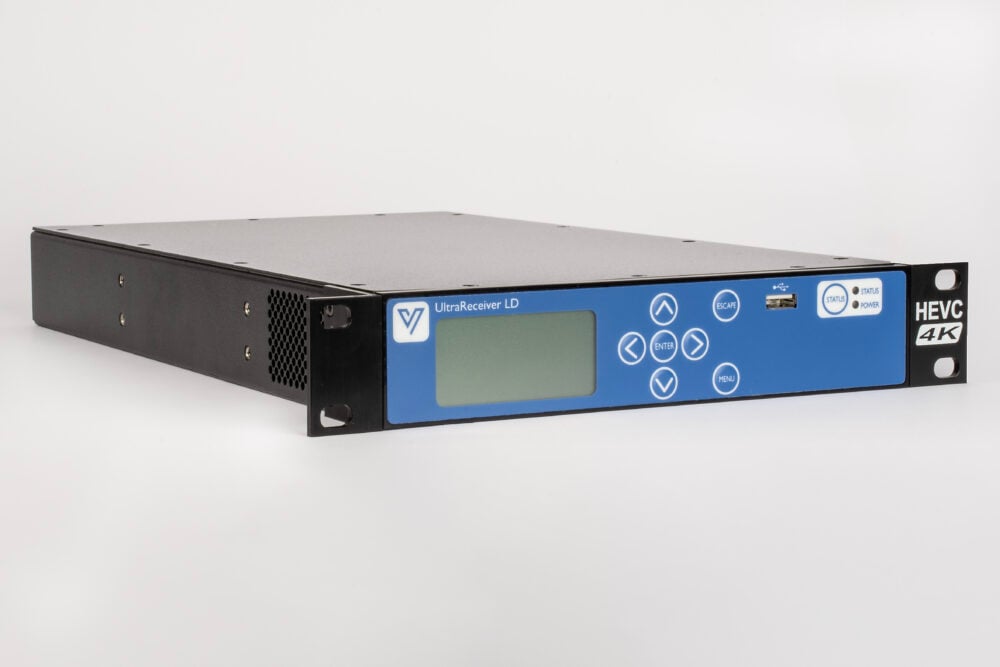

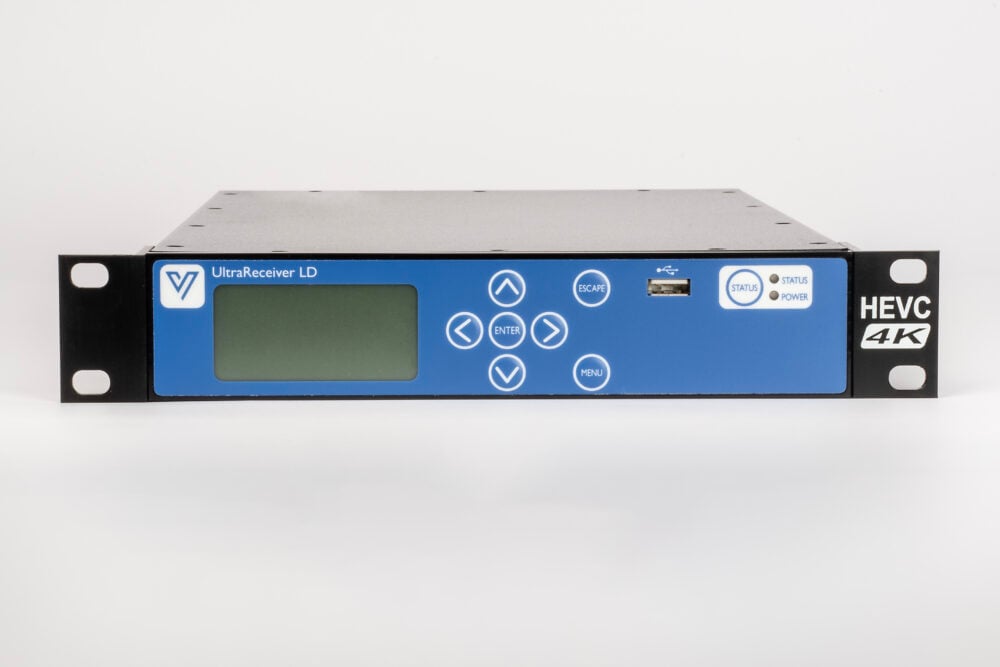

The ULRX-LD is a compact 1RU half-width, rack-mount receiver designed to meet the demanding needs of broadcast sports and ENG news coverage with wireless cameras.

This versatile receiver features 4x dual pedestal UHF inputs with Maximum Ratio Combining (MRC) and LMS-T demodulation, ensuring robust signal performance and superior video quality.

When paired with Vislink’s HCAM wireless camera transmitter, the ULRX-LD delivers stunning 4K UHD video with ultra-low end-to-end latency—sometimes as low as a single frame.

As a multi-format receiver, it supports both HD HEVC and HD MPEG-4 decoding and is typically used alongside Vislink’s L3025 series DownConverters for seamless integration into broadcast workflows.

ULRX-LD Datasheet

Key Features

Direct conversion RF architecture for exceptional adjacent channel performance and excellent sensitivity
DVB-T: QPSK, 16QAM & 64QAM; 6, 7, & 8MHz
LMS-T: QPSK & 16QAM
Variable bandwidth LMS-T: 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 20 & 24 MHz
HEVC (H.265) 4:2:2 profile, low latency HD decoding
MPEG-4 AVC (H.264) 4:2:2 profile HD decoding
Low bit rate MPEG-1 Layer II and AAC audio decode

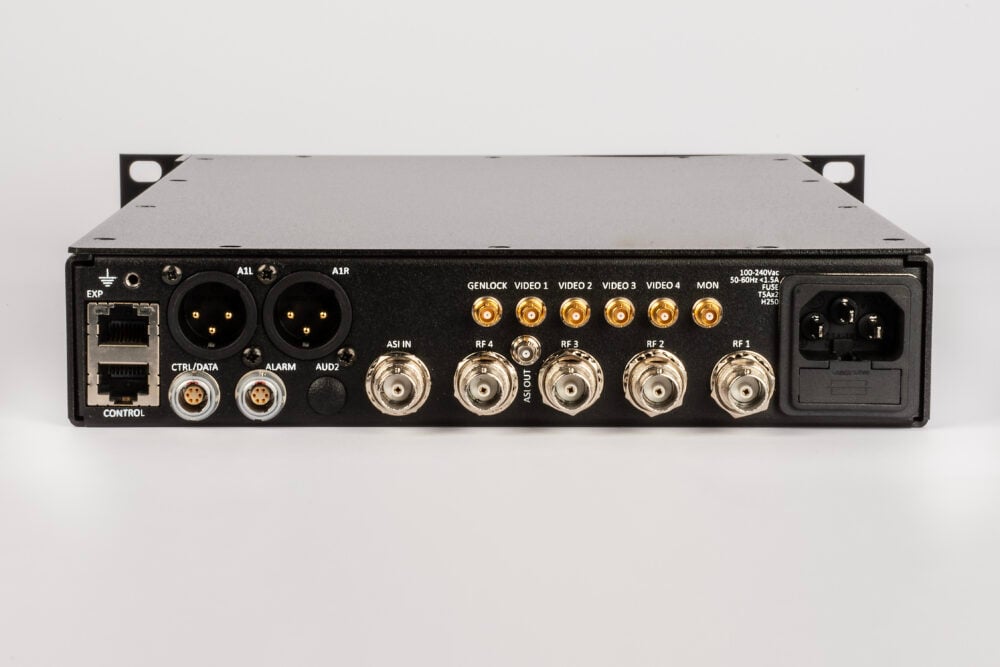

ASI input and output
Web browser and SNMP control
Quad SDI / HD-SDI outputs for UHD

Typical Applications

Event Coverage
News Coverage
Sports Coverage

ULRX_LD Datasheet
