4K UHD HEVC Multi-Format DVB-S2X Integrated Receiver Decoder
Products
Product Features
- DVB-S2X, S2, S satellite input
- ASI inputs and outputs
- 4K, HD, SD multi-format decoding
- HEVC, MPEG-4, MPEG-2 multi-standard decoding
- High quality 4:2:0, 4:2:2, 8-bit/10-bit profiles
- 1x 4K or HD services decoded
- Very low latency decoding
- High Dynamic Range support
- Flexible audio decode with Layer II, AAC
- Linear PCM and Dolby audio pass-through
- 8x stereo pairs of audio decoding
4k HEVC Multi-Format DVB-S2X Decoder

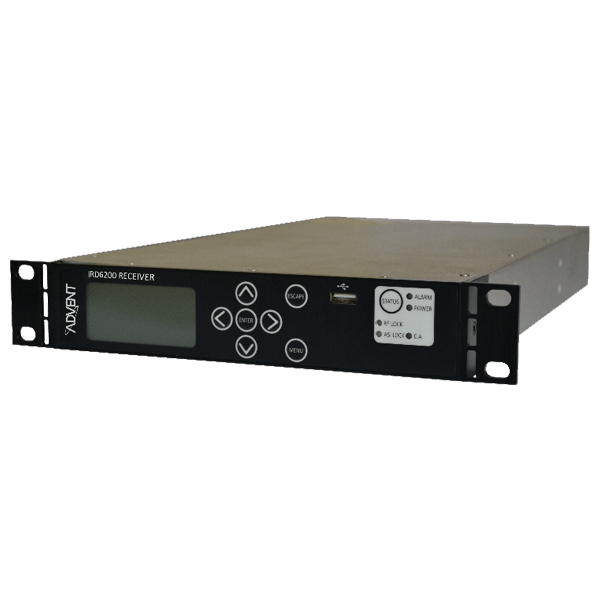

The Advent IRD6200 is a compact 4K UHD multi‑format Integrated Receiver Decoder that is ideally suited to News and Events applications where size, weight, and channel density is at a premium.
The Advent IRD6200 offers ultimate satellite bandwidth efficiency by utilising the latest HEVC video compression and DVB-S2X satellite demodulation technology – allowing a 50% reduction in leased satellite bandwidth compared to MPEG-4, DVB-S2 technology dramatically reducing satellite OPEX.
As a multi-format IRD the IRD6200 has the ability to decode video of all resolutions from SD to highest quality 4K UHD including High Dynamic Range. In addition to HEVC decoding, the IRD6200 also supports legacy H.264 and MPEG-2 decoding.
Inputs
|
Outputs
|
Video Decoder
|
Video Profiles
|
Ancillary Data
|
Encryption
|
Unit Control
|
Control Interface
|
Software Upgrade
|
Power
|
Size
|
Environmental
|
Demod Table
|
|
Note: SDI outputs are on HD-BNC mini connectors. Please order standard BNC conversion cables part number 9015307, if required.
| Audio Decoding | |||||
| Audio Codec | Transport Formats | Encoded Bit-rates (kbps) | Decode Bits/ Sample | Sampling Rate | Total Number of Audio Channels |
| MPEG-1 Layer I | ISO13818-3 | 32 to 384 | 16 | 48 kHz | Two stereo pairs for a total of 4 channels |
| MPEG-1 Layer II | ISO13818-3 | 32 to 384 | 16 | 48 kHz | Two stereo pairs for a total of 4 channels |
| AAC-LC | ADTS | 96 to 576 | 16 | 48 kHz | One stereo pair for a total of 2 channels |
| HE-AAC v2 | ADTS | 96 to 576 | 16 | 48 kHz | One stereo pair for a total of 2 channels |
| Linear PCM | SMPTE-302M | Depends Bits/ Sample | 16, 20 & 24 | 48 kHz | One stereo pair for a total of 2 channels |
| Video Decoding | |||||
| Video Codec | HEVC/H.265 – UHD | AVC/H.264 – HD | MPEG-2/H.262 – HD | ||
| Resolutions | 3840x2160p @ 60/ 59.94/ 50/ 30/ 29.94 1920x1080p @ 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.97 1920x1080i @ 60/ 59.94/ 50 1920x1080PsF @ 30/ 29.97/ 25 1280x720p @ 60/ 59.94/ 50 720x576i @ 50 720x480i @ 59.94 |
1920x1080p @ 60/59.94/50/30/29.97/25/24/23.97 1920x1080i @ 60/59.94/50 1920x1080PsF @ 30/29.97/25 1280x720p @ 60/59.94/50 720x576i @ 50 720x480i @ 59.94 |
1920x1080p @ 60/59.94/50/30/29.97/25/24/23.97 1920x1080i @ 60/59.94/50 1920x1080PsF @ 30/29.97/25 1280x720p @ 60/59.94/50 720x576i @ 50 720x480i @ 59.94 |
||
| Chroma Format | 4:2:0 and 4:2:2 | 4:2:0 and 4:2:2 | 4:2:0 and 4:2:2 | ||
| Bit Depth | 8, 10 | 8, 10 | 8 | ||
| Maximum Bit Rate (mbps) | 150 | CABAC: 40 CAVLC: 80 |
100 | ||
| Number of Channels | 1 | 1 | 1 | ||
| Latency | Bit rates lower than 75 Mbps: 1/4th of Frame Duration + 1 msec Bit rates greater than 75 Mbps: 1 Frame Duration + 1 msec |
1/4th of Frame Duration + 1 msec | 1/4th of Frame Duration + 1 msec | ||
| GOP Structure | Any | Any | Any | ||
| Rate Control | CBR / ABR / VBR / Capped VBR | CBR / ABR / VBR / Capped VBR | CBR / ABR / VBR / Capped VBR | ||
