MVP UltraLink Air

Multicam H.265 Encoder

The Vislink MVP WMT UltraLink family of mobile encoders are Vislink’ bonded cellular flagship products. As a part of the MVP portfolio of class-leading solutions, the UltraLink products are the most technological advanced mobile encoders available today.

In use by many global broadcasters to create high quality and low latency video feeds for outside broadcast and live remote production, the UltraLink can support up to 4 cameras simultaneously, can transmit 4K, and can include internal 5G modems.

The UltraLink product line is the first bonded backpack transmitter that provides real 4K. It is capable of delivering true 50/60 frames-per-second 4K and Ultra HD video quality from the field using 4G bonding technology. Besides its 4K abilities, UltraLink boosts 4x 3G and 1x 12G inputs for added performance and flexibility, as well as supporting 5G.

First Class All-in-One Encoder

The UltraLink is capable of supporting up to 40MB/sec over bonded networks and can transmit back to a studio or to the cloud using up to and including 8 internal 3G/4G/5G modems, Wi-Fi, LAN and/or satellite and can bond all these connections to make a single high bandwidth connection. By using adaptive bitrate, the UltraLink product line optimizes the video feed based on the available bandwidth ensuring high quality video even in the most demanding of situations.

The lightweight and modest sized encoder is available with a backpack and is battery powered. It supports many of the features expected of a mobile encoder including both H.265 and H.264 encoding, Store & Forward for internal storage, 2-way audio IFB intercom and return video.

The UltraLinks also boast a range of additional features including remote RCP control, Tally Control, IP streaming at the same time as video streaming, and the system can be used as a secure Wi-Fi hot spot even while live. It also includes a unique feature called 2Waylink allowing encoder-to-encoder streaming.

All encoders in the field can be remotely managed and controlled via LinkMatrix, a free-to-use management platform that operates from a browser on any device. This means non-technical journalists and production people in the field do not need to manage the units directly. LinkMatrix can manage individual encoders, destinations, show proxies,  record & go, video return, transmission and cellular networks and other set ups and configurations.


Enhanced additional features

  • Multi-camera support on a single encoder
  • REMI option for Tally, Presonus and RCP control
  • IP stream that can work at the same time as encoded live streaming (up to 150 Mb/sec)
Product Features
  • Mobile H.265/H.264 Rugged Encoder
  • Multi camera – 1, 2 or 4 input model available
  • Support for 4K, 5G and multi camera input
  • 8 internal modems (3G/4G/5G), Ethernet, WiFi and/or Satellite
  • Remote (web-based) management via LinkMatrix
  • Sub-accounts creation under the owner LinkMatrix account with limited permissions
  • Capability of simple editing for the recorded media on the LinkMatrix account

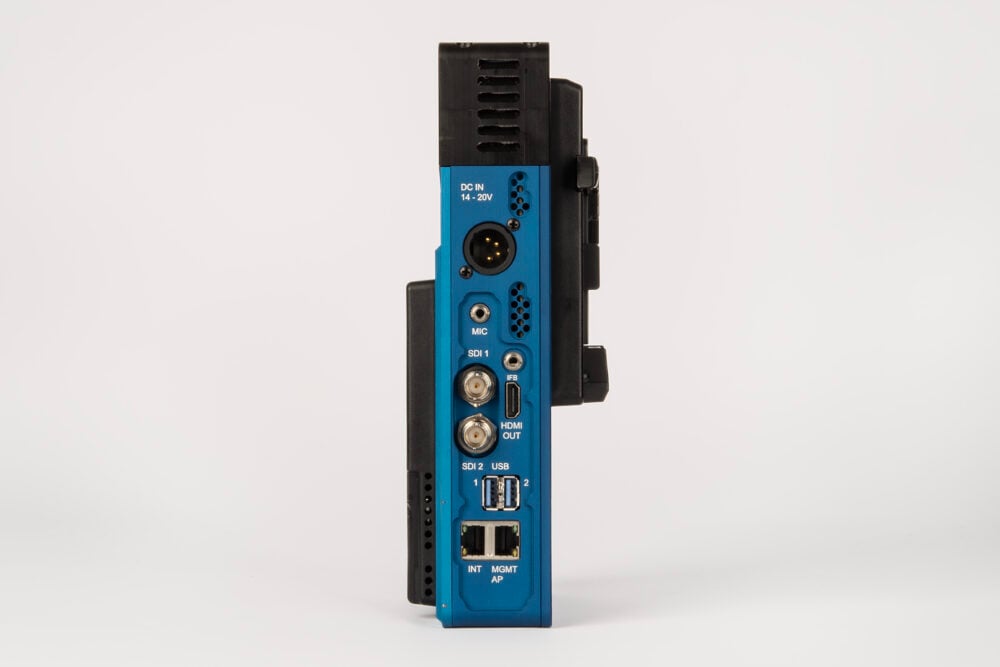

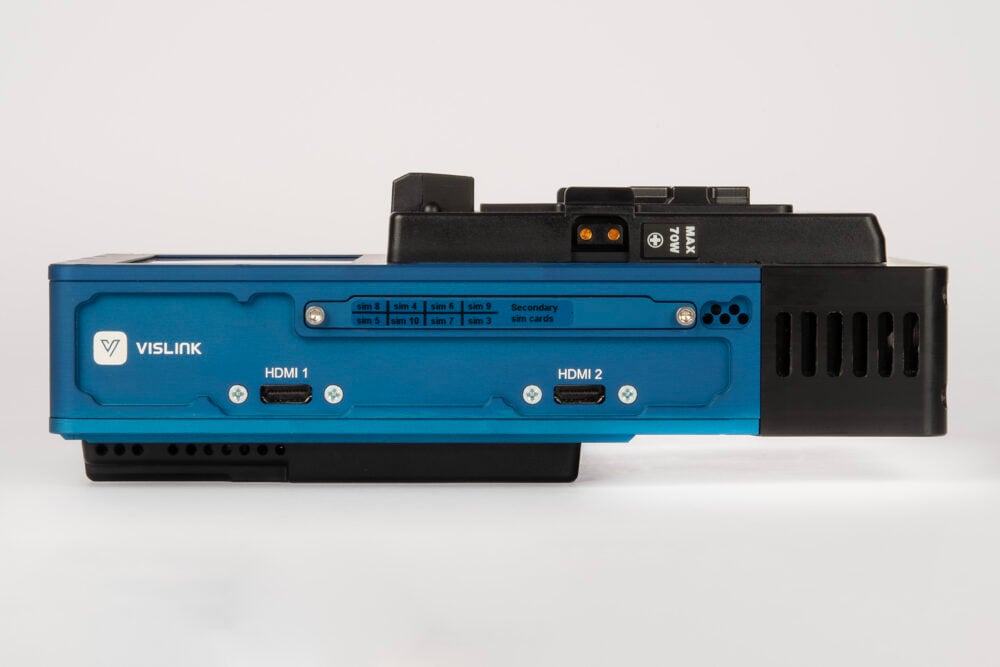

  • HD-SDI (3G and 12G) and HDMI inputs
  • IP outputs – NDI, RTMP, RTSP, MPEG-TS
  • Capability of streaming via RTMP or RTSP URLs without needing a transcoder or domain server
  • Internet hotspot (LAN and WiFi), Store & Forward concurrently with video live stream
  • Video return capability between encoders and decoders on external input to the decoder
  • WMT De-bonder and Playout Server capability of routing each live connection to any or all SDI connections
  • Capability of WMT DE-bonder and Playout Server to receive 4 live connections simultaneously from unlimited encoders via switching between them
    through the server ID set
  • Loopthrough and full IFB features
  • REMI Control (Full Intercom, RCP and Tally)
  • Point-to-point transmission or cloud decoding
