Debonding and Playout Server

Vislink’s portable receivers are essential components in broadcast and live streaming workflows, handling the debonding, decoding, and playout of simultaneous live SD, HD, and 4K video streams from Vislink’s encoder solutions.

Receiver Options:

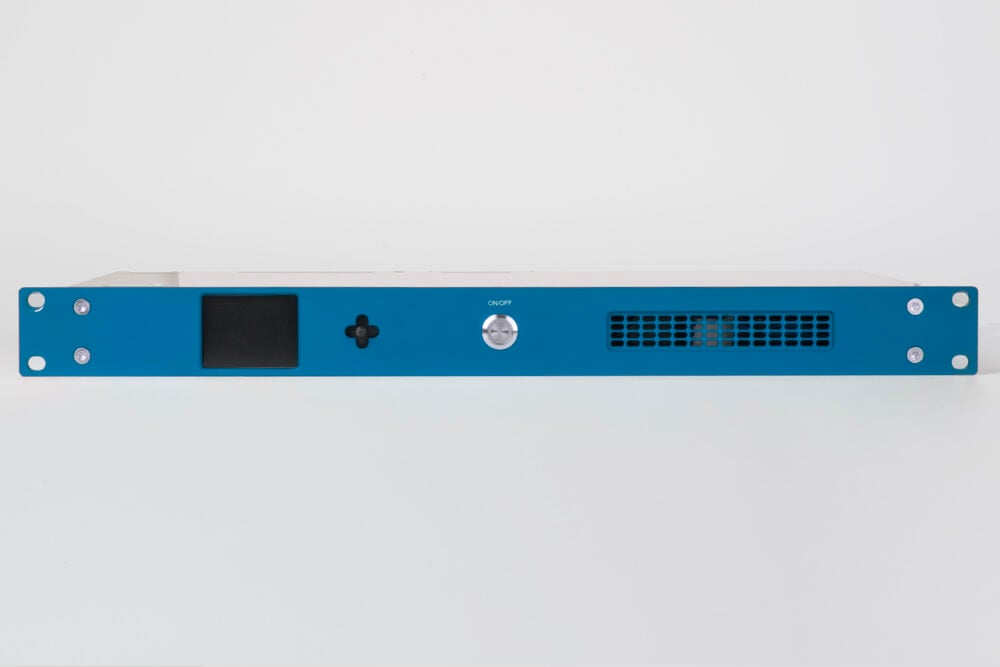

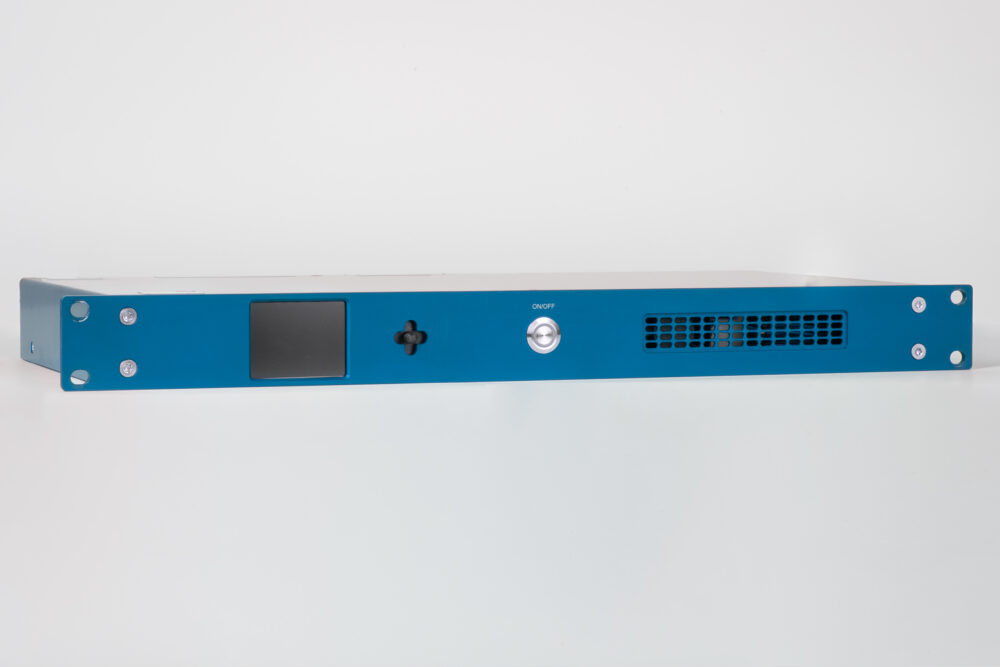

• Standard Playout: 1U server with up to 4x HD-SDI outputs.
• REMI Version: 2U server with RCP, Tally control, and PreSonus for enhanced IFB audio return.
• Remote Location Setup: Receivers can be equipped with internal modems for installation in remote locations without LAN connectivity, such as OB trucks.

Vislink’s receivers also support third-party encoders via the “Universal Playout” feature in LinkMatrix, our hosted management platform. The enhanced 2U REMI version includes additional features like RCP camera control, Tally Light, and PreSonus audio intercom.

Technical Features:

• Livestream Output: 1, 2, or 4 HD-SDI outputs, with 4K-SDI on select models.
• SDI Playout: 3G and 12G support.
• IP Playout: NDI, RTMP, RTSP, MPEG-TS, SRT.
• Remote Management: Fully manageable via LinkMatrix.

Available Models:

• 1U Server: For HD-SDI, 4K-SDI, and/or IP output.
• 2U Server REMI Enabled: For remote production with HD-SDI, 4K-SDI, and IP output.
• LinkSwitch: IP decoder supporting up to 20 IP streams at the receiving location.

Debonding Playout Servers Datasheet
